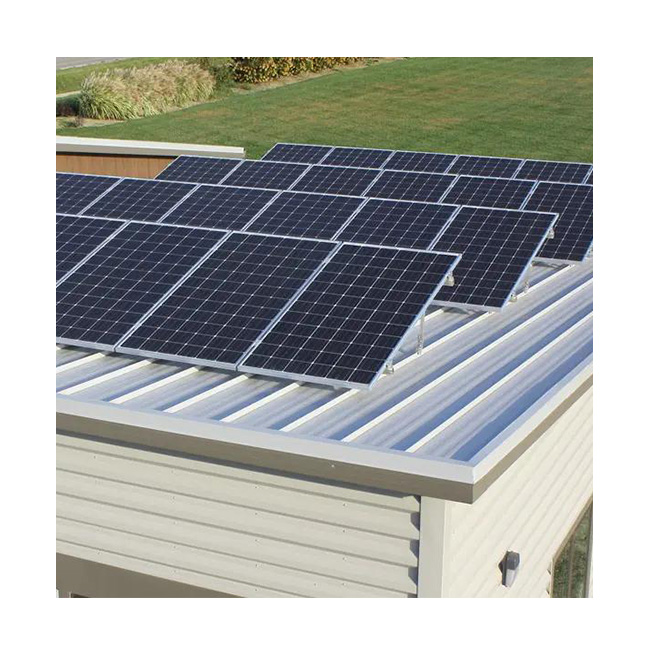

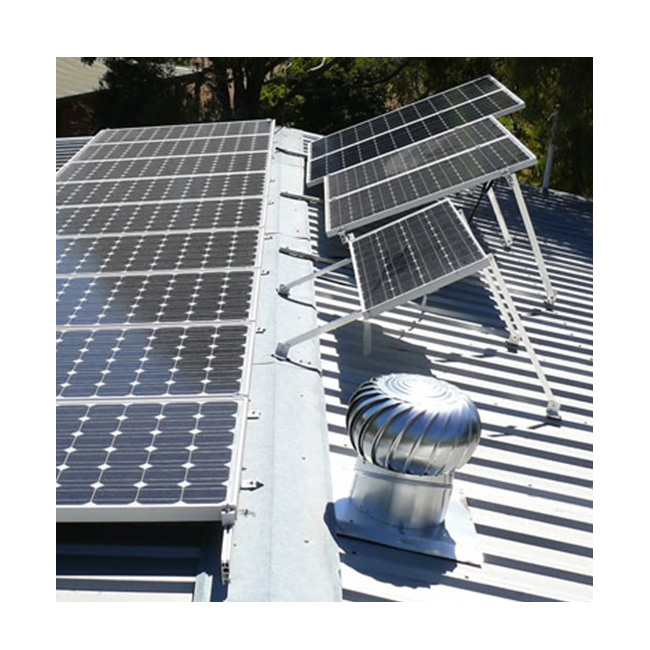

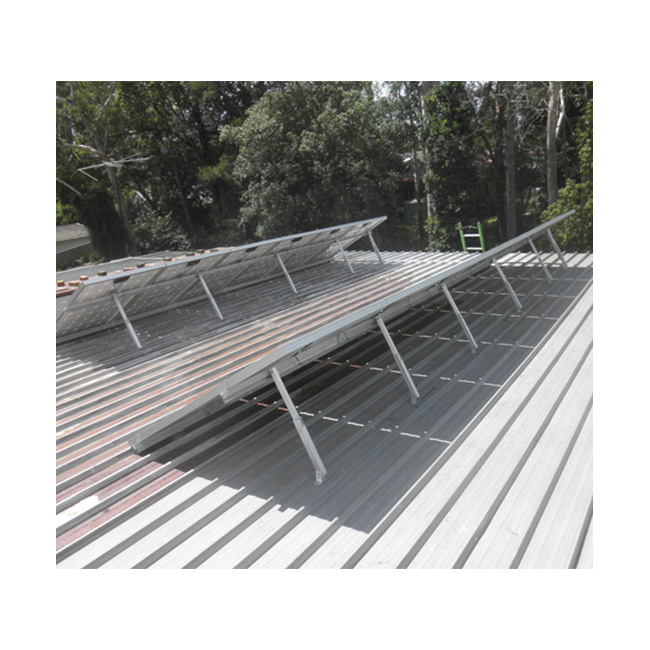

Adjustable Tilt Solar Racking System is applicable to install the usual framed module to tilt a certain angle with the roof. The solar system can be a fixed angle or adjustable such as 10~15 deg, 15~30 deg and 30~60 deg for your requirement. The special extruded aluminum rail, the tilt-in module, the clamp kit and the round leg can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.
10 Years Warranty
Small Orders Available
Excellent Adaptability
Quick Installation Guide

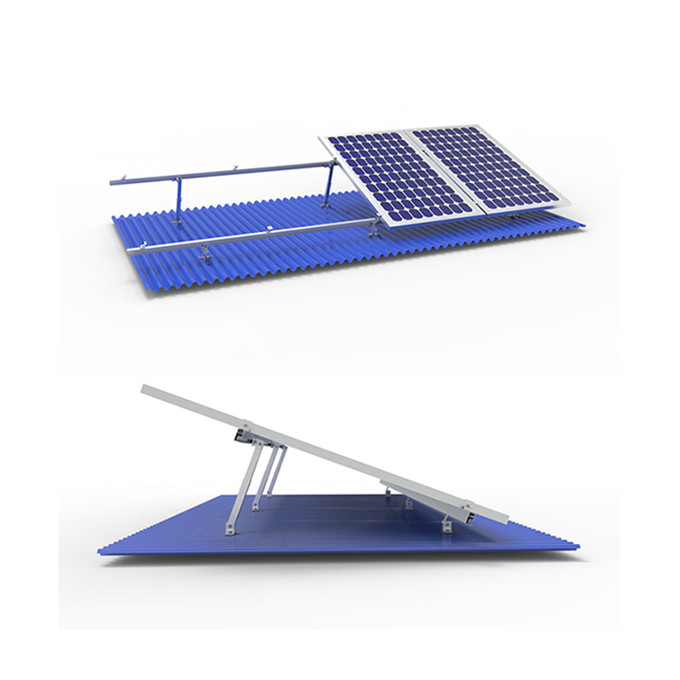

– Adjustable tilt kit for rooftop with angle adjustable;
– Three options: 10°～15°,15°～ 30°,30°～60°;
– Application: flat / standing seam / trapezoid metal rooftop, concrete ground…
– Pre-assembly packing for quick & easy installation;
– 30% up power increase performance;

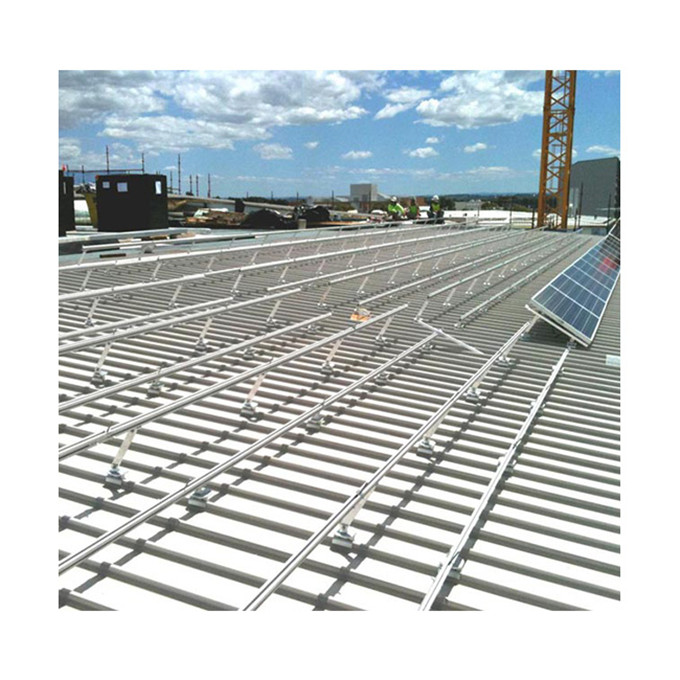

| Install Site | standing seam / trapezoid metal rooftop |
| Material | Aluminium, Steel |
| Tilt Angle | 10~60 deg |
| Building Height | <20 M |
| Max Wind Speed | 60 m/s (130 mph) |
| Snow Load | 1.4 KN/M2 (30 psf) |
| Standard | ASCE_7-10, JIS C8955: 2017, EN1090, International Building Code IBC 2009 |
| Material | High Class Aluminum alloy Al6005-T5& Stainless steel 304 |
| Warranty | Ten years warranty and twenty years service life |
You’re free to contact us to get all the warranty details.
